Vigil

Vigil is a full open-source Sanctum companion app for iOS and Android, using libkyrka, and is fully interoperable with sanctum or tier6. It is distributed as source-only.

Get Vigil

Screenshots

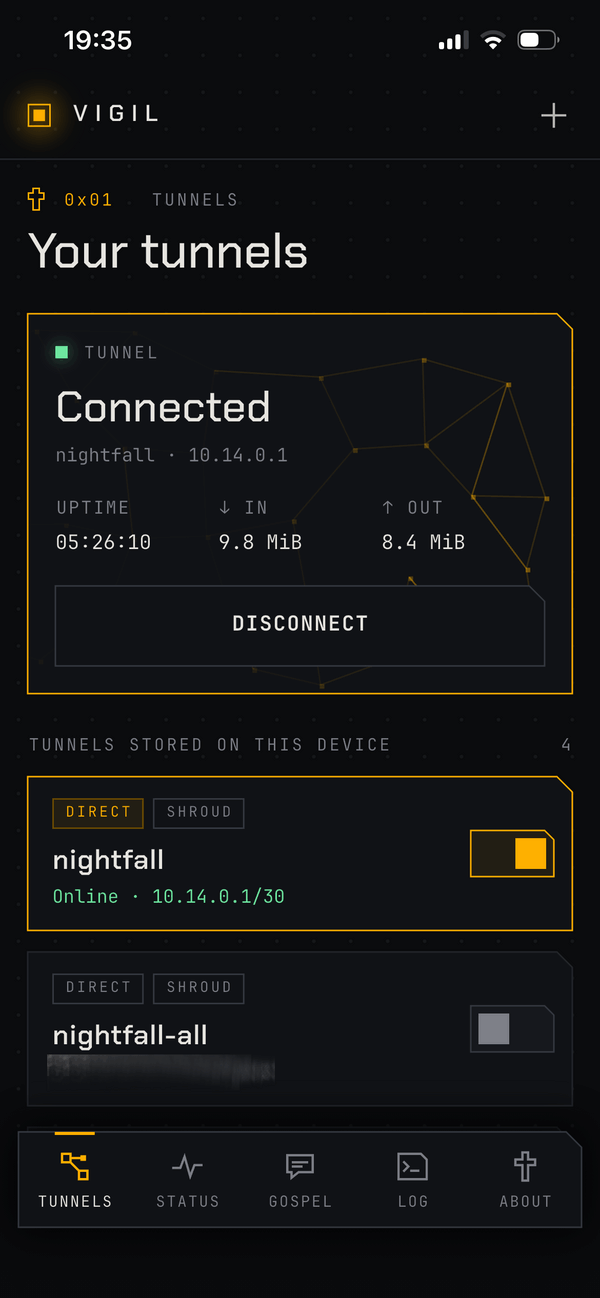

Vigil tunnel overview showing a connected tunnel and stored tunnels — Tunnels

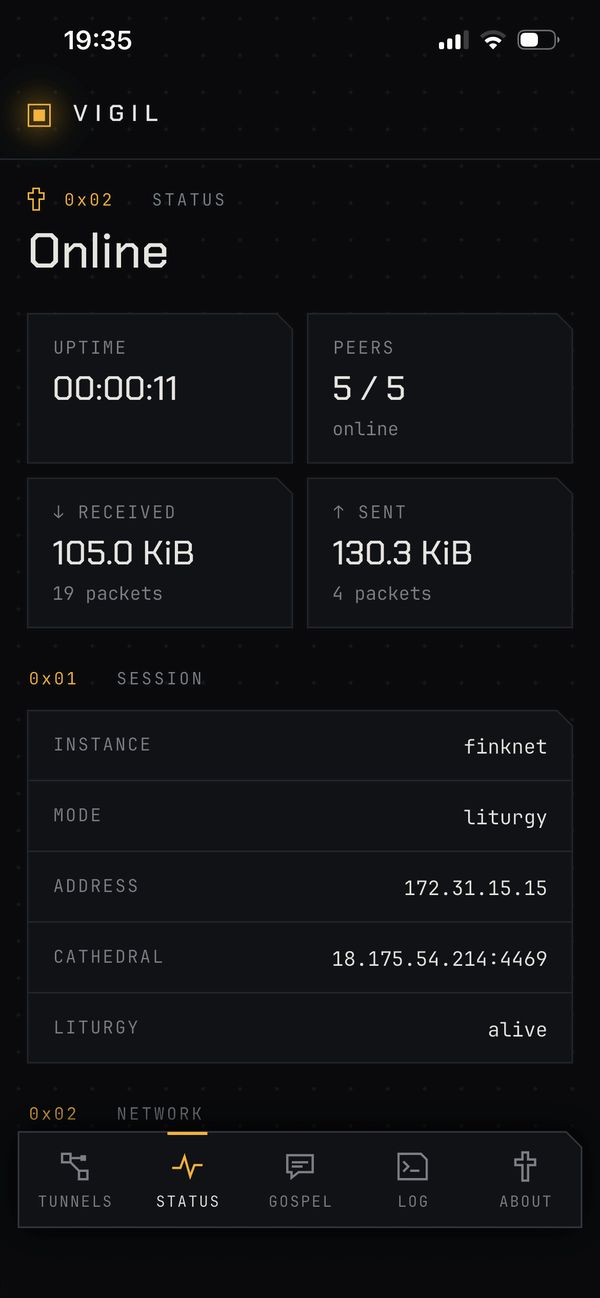

Vigil status screen showing uptime, peers and session details — Status

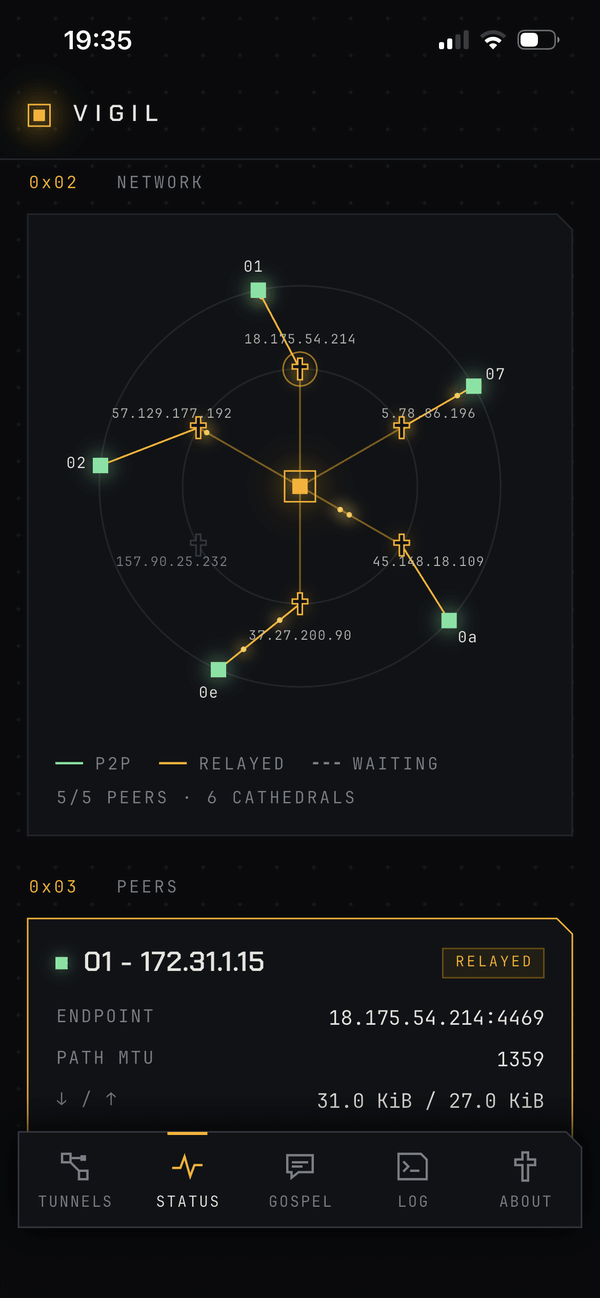

Vigil network view showing liturgy peers connected via cathedrals — Network

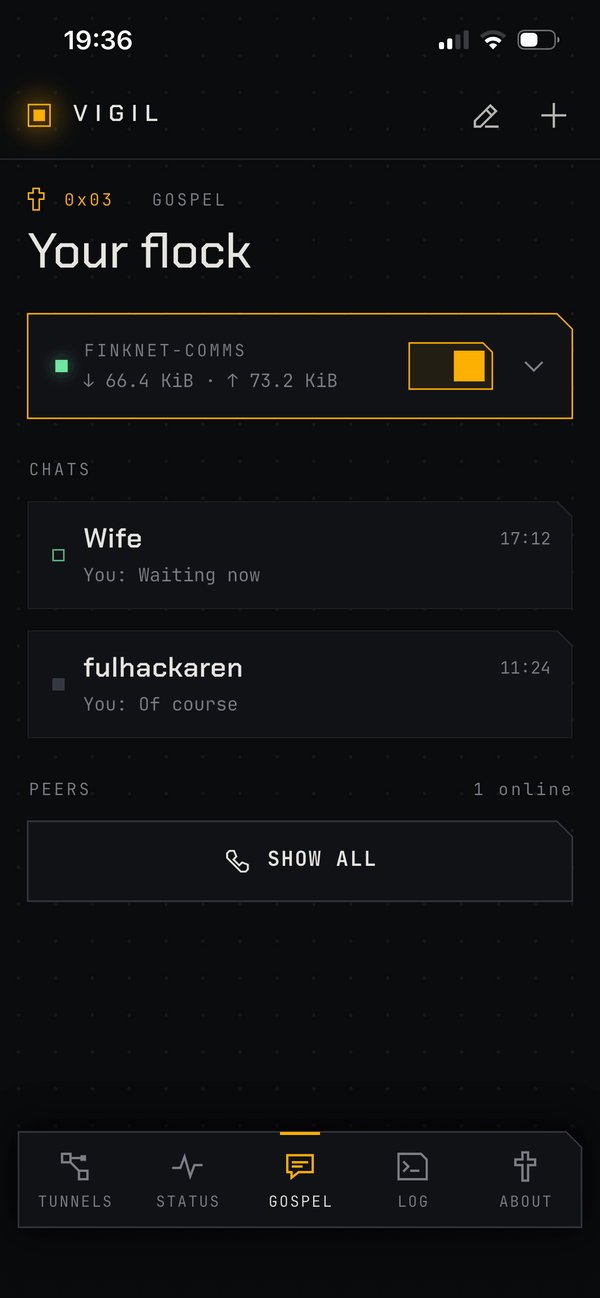

Vigil gospel view listing chats and peers in a flock — Gospel

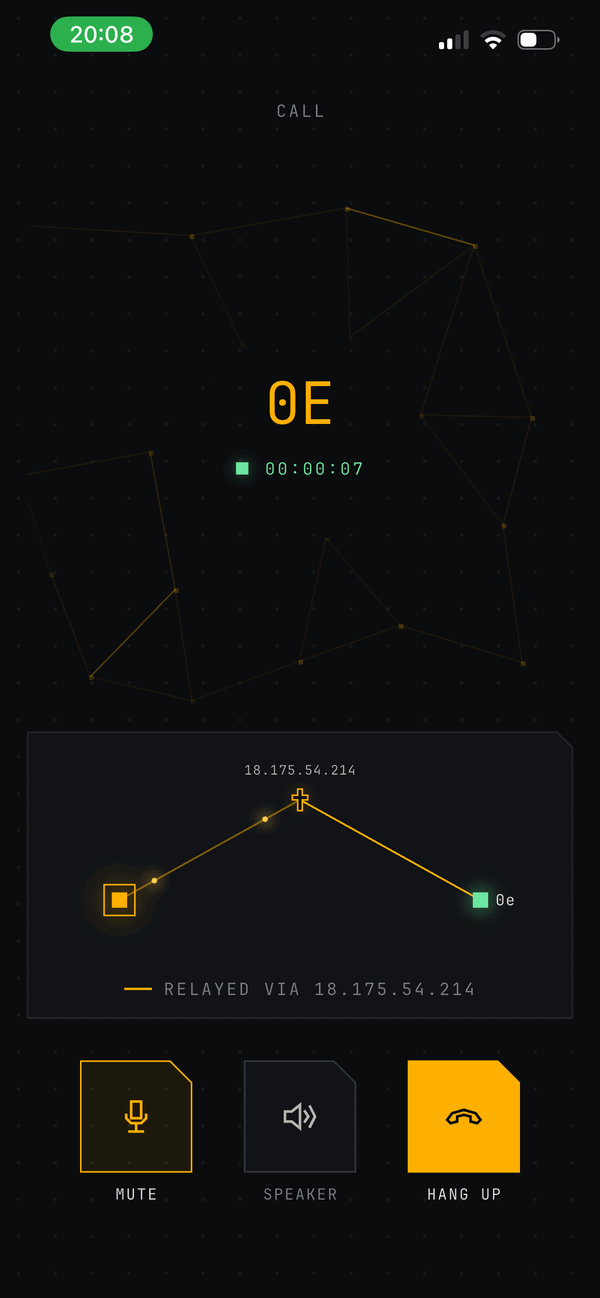

Vigil during an end-to-end encrypted voice call — Voice call

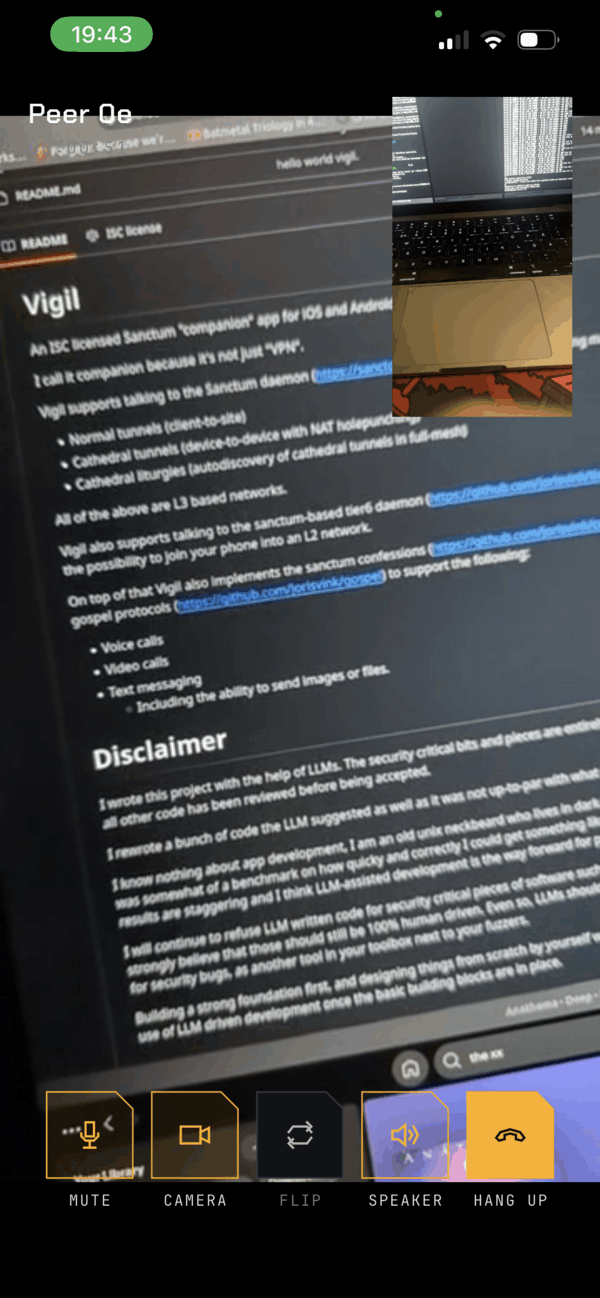

Vigil during an end-to-end encrypted video call — Video call

Modes

Vigil can talk to the sanctum daemon using one of the following modes:

Mode	Description
`tunnel`	A normal client-to-site tunnel towards a sanctum instance.
`cathedral`	Device-to-device tunnels via a cathedral with NAT holepunching.
`liturgy`	Automatic discovery of cathedral tunnels in a full-mesh, see liturgies.

Or it can talk to the tier6 daemon, giving you the possibility to join your phone into an L2 network.

Calls and messages

On top of tunnels, Vigil implements the sanctum confessions and gospel protocols to support:

Voice calls
Video calls
Text messaging, including the ability to send images or files

Building

Android

Make sure Android Studio is installed. Can be compiled on Linux or macOS.

$ make android
$ adb install -r app/build/app/outputs/flutter-apk/app-release.apk

iOS

Requires macOS with Xcode installed.

$ echo "DEVELOPMENT_TEAM = <team>" > app/ios/Team.xcconfig
$ make ios
$ xcrun devicectl list devices
$ xcrun devicectl device install app --device <device> \
    app/build/ios/iphoneos/Runner.app

Configuration

Vigil is configured using a short text configuration, usually imported as a QR code. Below are a few examples.

A standard tunnel

vigil 1
instance office
tunnel 10.77.0.2/24 1408
peer vpn.example.com:4500
secret <64 hex characters>
route 0.0.0.0/0
dns 10.77.0.1

A tunnel using a cathedral

vigil 1
instance laptop
tunnel 10.88.0.2/24
spi 0c0d
kek <64 hex characters>
cathedral cathedral.reliquary.se:4469
cathedral_id 5eb2411f
cathedral_flock 493abf95a07e0c00
cathedral_secret <64 hex characters>
cathedral_cosk <128 hex characters>

A liturgy via a cathedral

vigil 1
instance mesh
mode liturgy
spi 0c
kek <64 hex characters>
liturgy_group 0001
liturgy_prefix 172.31.0.0
cathedral cathedral.reliquary.se:4469
cathedral_id 5eb2411f
cathedral_flock 493abf95a07e0c00
cathedral_secret <64 hex characters>
cathedral_cosk <128 hex characters>

A tier6 configuration

vigil 1
instance flock
mode liturgy
tier6 yes
spi 0c
kek <64 hex characters>
cathedral cathedral.reliquary.se:4469
cathedral_id 5eb2411f
cathedral_flock 493abf95a07e0c00
cathedral_secret <64 hex characters>
cathedral_cosk <128 hex characters>

Do not specify a tunnel ip if you want tier6 to auto-assign addresses.

A gospel configuration

vigil 1
instance calls
mode gospel
spi 0c
kek <64 hex characters>
liturgy_group 0001
cathedral cathedral.reliquary.se:4469
cathedral_id 5eb2411f
cathedral_flock 493abf95a07e0c00
cathedral_secret <64 hex characters>
cathedral_cosk <128 hex characters>

Common options

Option	Description
`shroud`	Turn shroud off or on.
`dns`	Configures the DNS server to use.
`mtu`	Set to `auto` for MTU discovery.
`route`	Add explicit routes over the tunnel.
`block_ipv6`	Defaults to yes when you have a 0.0.0.0/0 route.

Generating a QR code

The tools/vigil-config shell script can take existing sanctum key material and convert them into a vigil configuration shown as a QR code or plaintext configuration.

$ ./tools/vigil-config cathedral -i laptop -c cathedral.reliquary.se:4469 \
    -f 493abf95a07e0c00 -x 0c0d -k kek-0x0c -I 5eb2411f \
    -C id-5eb2411f -K cosk-5eb2411f -t 10.88.0.2/24 -q
